Available for rent

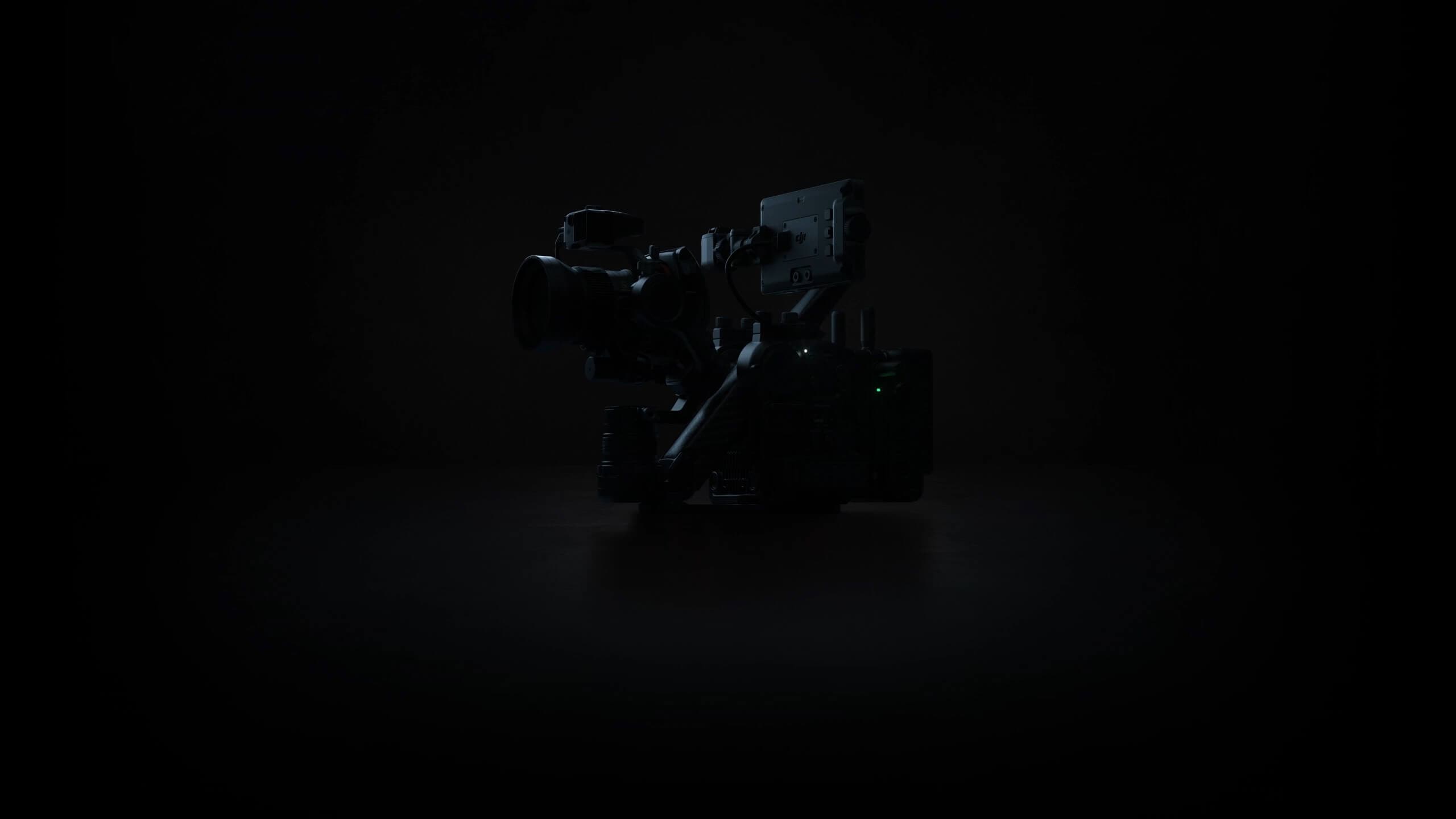

DJI Ronin 4D 6K
Full-frame cinema camera with a 4-axis gimbal — at UBC Studio in Plovdiv.
UBC Sound & Cinema Studio rents the DJI Ronin 4D 6K: a cinema camera with a 4-axis gimbal, LiDAR rangefinder and onboard monitor in one body. This is the Zenmuse X9-6K version — 6K/60fps and 4K/120fps internal RAW — not the 8K model. The wireless video and XLR audio modules are not included in this kit.
Official showreel
Official DJI Ronin 4D showreel. Sample footage shot with the 6K sensor.
Zenmuse X9-6K
Full-frame CMOS. Internal 6K/60fps and 4K/120fps RAW.
4-axis gimbal
Pan, tilt, roll, plus a Z-axis that takes vertical shake out of walking shots.
LiDAR focus
Onboard LiDAR rangefinder for autofocus, ActiveTrack Pro and LiDAR waveform.
Cinema codecs
Apple ProRes RAW, ProRes 422 HQ and H.264. Dual native ISO 800/5000 on the 6K body.
This rental includes
- Ronin 4D 6K main body with Zenmuse X9-6K gimbal camera
- 4-axis stabilization, including the Z-axis
- LiDAR Range Finder
- 5.5" high-bright main monitor
- Hand grips and top handle
- DL lens mount
- E-mount for Sony lenses
- HDMI output and 3.5 mm mic/line input on the body
- DJI PROSSD 1TB
- 6 original batteries + charger
Not in this kit
- Wireless video module — not included in this kit
- X9 audio module (XLR / phantom power) — not included
- Ronin 4D Flex extension
- High-bright remote monitor
- Lenses — ask us; we also rent Sony FE G Master zooms
6K full-frame imaging
The Zenmuse X9-6K records internally at up to 6K/60fps and 4K/120fps in Apple ProRes RAW, with ProRes 422 HQ and H.264 as well. CineCore 3.0, 14+ stops of dynamic range, D-Log / Rec.709 / HLG, dual native ISO 800/5000, and a built-in 9-stop ND (Clear through 512) sit in the same body as the gimbal.
Four axes, one operator

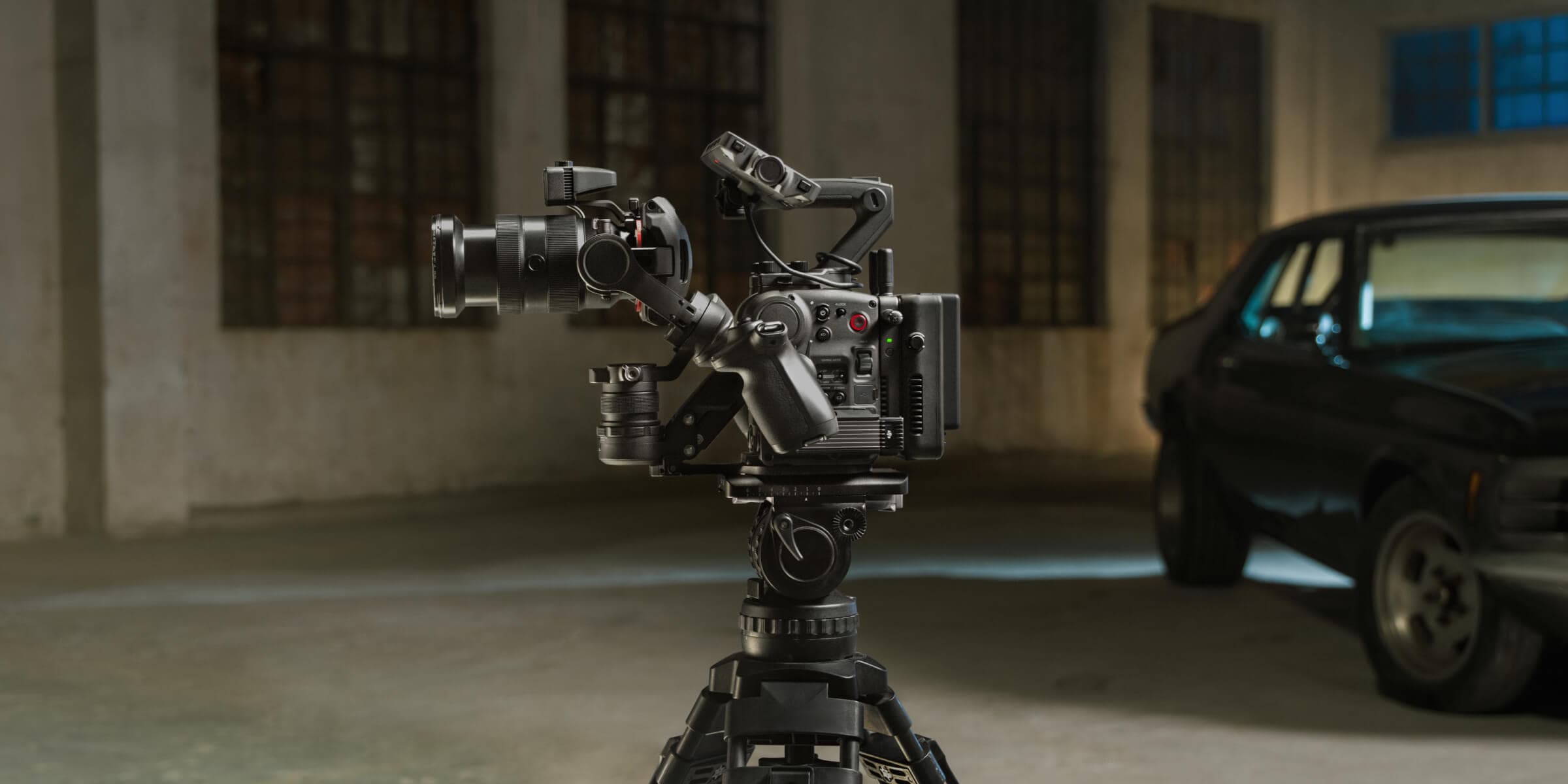

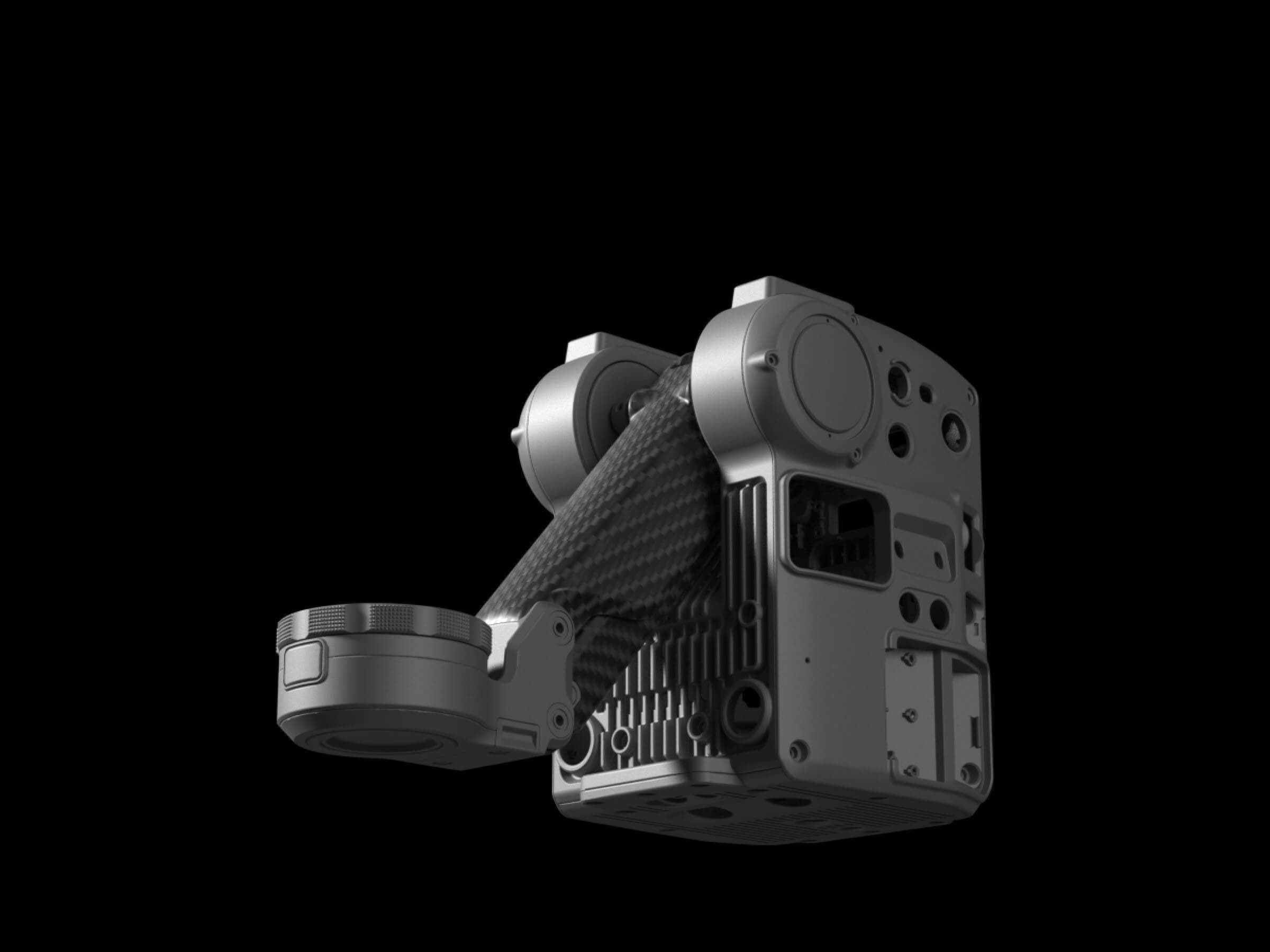

Besides pan, tilt and roll, Ronin 4D adds a Z-axis with about 130 mm of travel so walking and running shots stay level without a separate steadicam. The X9 gimbal camera, carbon-fibre Z-arm, hand grips and 5.5" 1000-nit monitor are built as one rig — ready handheld, on the shoulder, or on sticks.

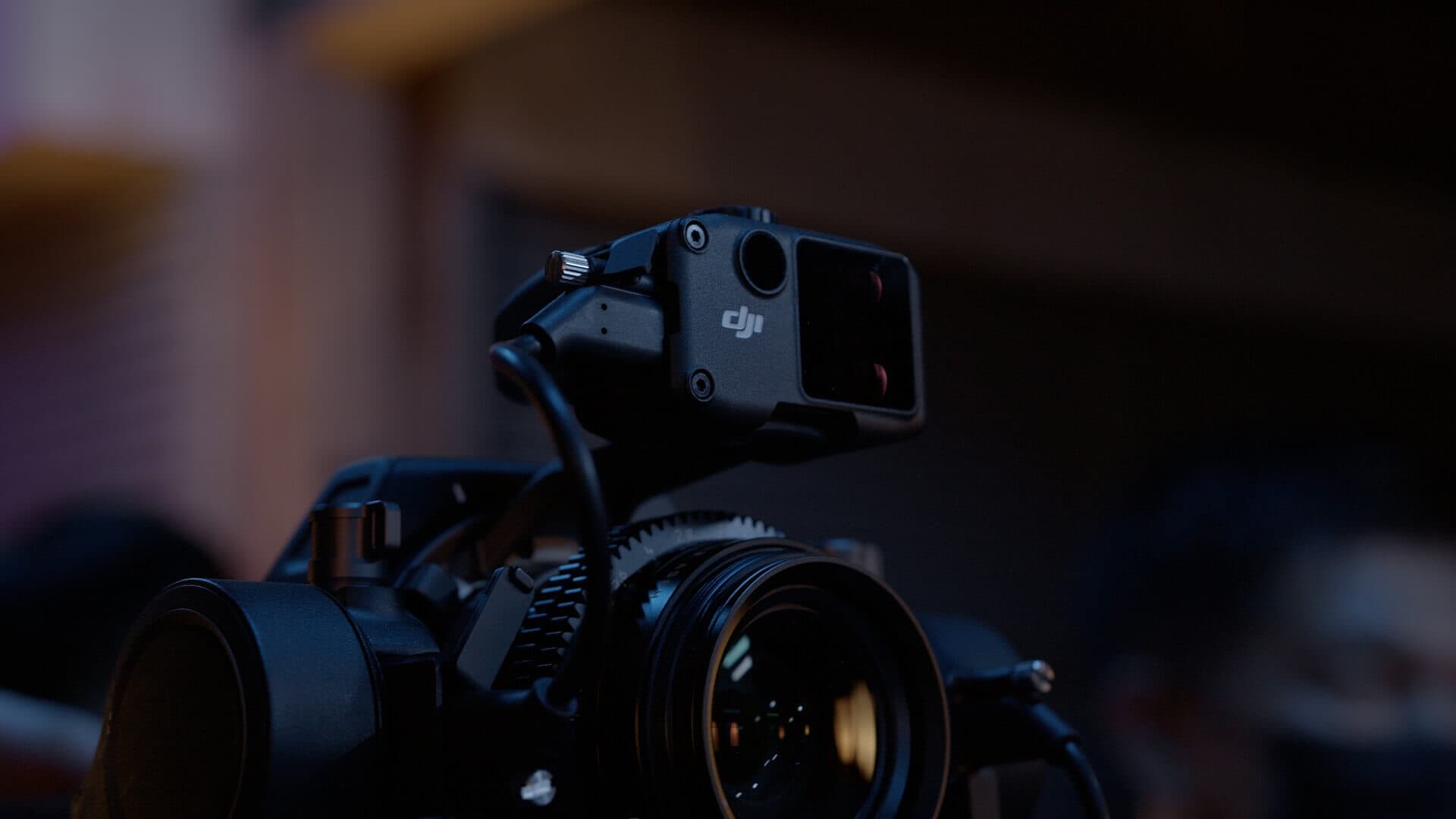

LiDAR focusing
The LiDAR Range Finder sits above the lens and measures thousands of distance points so autofocus can lock onto faces, bodies or a chosen subject, even in lower light. ActiveTrack Pro and LiDAR waveform give a solo operator a focus puller on the camera. Manual lenses still need the Zenmuse X9 focus motor.
On a shoot
6K specs that matter for a shoot
- Camera
- Zenmuse X9-6K (not X9-8K)
- Sensor
- 35 mm full-frame CMOS
- Max recording
- 6K/60fps and 4K/120fps internal RAW
- Codecs
- Apple ProRes RAW / RAW HQ, ProRes 422 HQ / 422 LT, H.264 (4:2:0 10-bit)
- Dual native ISO
- 800 / 5000 (X9-6K). EI 200–12800
- Dynamic range / gamma
- 14+ stops. D-Log, Rec.709, HLG
- ND
- Built-in 9-stop: Clear, 2, 4, 8, 16, 32, 64, 128, 256, 512
- Stabilization
- 4-axis (pan / tilt / roll / Z-axis, ~130 mm mechanical Z range)
- Focus
- LiDAR autofocus, ActiveTrack Pro, AMF. Manual lenses need the X9 focus motor.
- Monitor
- 5.5" 1920×1080 rotational touchscreen, 1000 cd/m²
- Media
- DJI PROSSD 1TB included. Also records to CFexpress 2.0 Type B and USB-C SSD.
- Lens mount
- DL and E-mount (Sony) included. L, M and PL via mount units — ask if you need one.
- Audio on this kit
- Built-in 2-ch stereo and 3.5 mm TRS mic/line. The X9 audio module (XLR) is not included.
- Video out
- HDMI 2.0 on the body. No wireless video module.
- Battery
- 6 original TB50 batteries + charger included. Up to ~150 minutes still RAW recording per battery.
- Weight
- Approx. 4.67 kg fully assembled, excluding lens and media
Pickup in Plovdiv. Tell us your dates, mount/lens needs and whether you want an operator. No public price list yet — we quote on request.
Product photography: DJI
Official DJI specs
